Obstructive sleep apnea (OSA) is one of independent dangerous factors for cardiovascular disease including heart failure. Recent studies demonstrated that left ventricular diastolic dysfunction (LVDD) and pentraxin-3 (PTX-3) are early signs for development of heart failure. The objective of our study was to estimate the relation between OSA severity and LVDD and PTX-3.
Sixty-six OSA patients and 25 healthy people who underwent polysomnography to diagnose OSA were enrolled. Ninety-one participants were divided into three groups as per apnea-hypopnea index (AHI), including mild (5 ≤ AHI < 15) and moderate-severe OSA (AHI ≥ 15) and control group (AHI < 5). Left ventricular diastolic function was evaluated by the ratio of early diastolic peak transmitral flow velocity (E)/peak early diastolic mitral annular velocity (Em) (E/Em) and maximal left atrial volume index (LAVI). Peripheral blood levels of PTX-3 were measured.
Our results showed that levels of PTX-3 increased significantly, and the ratio of E/Em and maximal LAVI increased obviously with the increase of OSA severity. There was a remarkable positive correlation between the E/Em ratio, maximal LAVI and AHI. Levels of PTX-3 in serum were positively correlated with the E/Em ratio. Levels of PTX-3 were also positively related with maximal LAVI.
OSA patients showed significant enhancement of PTX-3 levels and LVDD. Furthermore, both PTX-3 and LVDD were independently correlated with severity of OSA defined by AHI. Serum PTX-3 levels were positively correlated with LVDD in OSA patients.
Left ventricular diastolic dysfunction, E/Em, Left atrial volume index, Obstructive sleep apnea, Pentraxin-3
Obstructive sleep apnea (OSA) is a frequent sleep-related respiratory disease with frequent upper airway total or partial obstruction during sleep . Chronic intermittent hypoxia (CIH) and hypoxemia attributing to apnea provoke systemic effects and increase levels of biomarkers related to cardiovascular abnormality .
Left ventricular diastolic dysfunction (LVDD) is an early marker of cardiac function abnormality before clinically noticeable cardiovascular disease [3,4]. It is characterized by reducing and/or totally losing the relaxation and compliance of cardiomyocytes. Echocardiographic examination is used as a convenient and reliable method to measure left ventricular functions. Diastolic function was evaluated by the ratio of early diastolic peak transmitral flow velocity (E)/peak early diastolic mitral annular velocity (Em) and left atrial volume index (LAVI) . Early diagnosis and effective intervention of LVDD have become one of the most pressing problems in the cardiovascular field.
Systemic inflammation is increasingly identified as a risk factor for some cardiovascular complications  and an acceptable factor in the pathogenesis of cardiovascular disorders in patients with co-existent OSA [2,7]. Inflammatory markers are closely concerned with the pathogenesis of heart failure, adverse prognoses and the worst cardiac function. Pentraxin-3 (PTX-3) was recently identified as one of the members of the pentraxin family, including C-reactive protein (CRP) and serum amyloid P. PTX-3 was generated by endothelial cells, monocyte-macrophages and neutrophils following inflammatory stimuli . Compared with hs-CRP, PTX-3 might definitely and sensitively reflect localized inflammation in tissues and was regarded as a novel biomarker of cardiovascular system inflammation . Recent studies showed that serum PTX-3 levels significantly increased in moderate and severe OSA patients [9,10], and PTX-3 was an independent inflammatory marker associated with the occurrence of LVDD [4,11]. However, the relationship between PTX-3 and LVDD remained unclear in OSA patients. The objective of the present study was to appraise the correlation between inflammatory markers and LVDD among OSA patients.
A cross-sectional study was conducted in Department of Respiratory Medicine of Chinese People's Liberation Army Bethune International Peace Hospital. The study protocol was authorized by ethics committee for clinical research in Chinese People's Liberation Army Bethune International Peace Hospital. All subjects offered informed consent in writing.
Ninety-one suspected OSA patients presenting to Department of Respiratory Medicine in the present hospital who finished overnight polysomnography (PSG) were enlisted in our study. Patients with smoking history, active infections, chronic obstructive pulmonary disease, hypertension, diabetes mellitus, left ventricular systolic dysfunction (defined as left ventricular ejection fraction (LVEF) < 50%) and heart disease were removed from our study. Subjects with apnea hypopnea index (AHI) < 5 were regarded as control group. The AHI cutoff point of diagnosis for mild OSAS was 5-15, and moderate-severe OSA was diagnosed by AHI ≥ 15 incidents in an hour of sleep.
Overnight PSG was performed in subjects from 22 p.m. to 6 a.m., and parameters were recorded using a computer system (Alice 4, Philips Respironics, Murrysville, PA, USA). Apnea, hypopnea, and electroencephalogram recordings were manually graded as per standard criteria. Apnea was considered as a complete Interrupt of nasal flow for at the least 10 second. Hypopnea was defined as a 50% reduction in airflow for at least 10 second together with at least 4% of oxyhaemoglobin desaturation or an arousal registered by the electroencephalogram. AHI was calculated according to the mean number of apnea and hypopnea during PSG-recorded sleep time.
Echocardiographic examination was regarded as one of most convenient and reliable methods to assess left ventricular functions. Thus, the day after PSG finished, transthoracic echocardiographic examination using a Philips iE33 ultrasound system and S5-1 broadband phased array transducer was carried out by a cardiologist who knew nothing about the PSG results. Left ventricular diameters, interventricular septum thickness, left ventricular posterior wall thickness, and left atrial diameter were checked by M-mode echocardiography. LVEF was computed by the modified Simpson technique. E and late diastolic peak transmitral flow velocity (A), E/A ratio, and deceleration time were measured with pulsed wave Doppler. Em and peak late diastolic mitral annular velocity (Am) were obtained by pulse-wave tissue Doppler imaging at the septal site of the mitral annulus. The E/Em ratio was used as an index of left ventricular filling pressure. Maximal left atrial volume (LAV) was also measured using the biplane modified Simpson's method, and LAVI was calculated as maximal LAV/body surface area.
After PSG, blood samples were taken from all overnight fasting participants and placed in ethylenediamine tetra acetic acid coated polypropylene tubes. The blood samples were centrifuged by 5000 r/m for 10 min at 4 ℃, and the clear plasma supernatants were stored at -80 ℃. Plasma PTX-3 was detected by enzyme-linked immunosorbent assay (ELISA) with Quantikine® ELISA (Human PTX-3 Immunoassay, R&D Systems, Inc., Minneapolis, USA).
Continuous variables were expressed as mean ± SD. Results were analyzed using one-way ANOVA with least significant difference tests for LSD comparisons, correlations between variables were explored by using Pearson coefficient. P value less than 0.05 was considered as statistical significance. Statistical analysis was carried out by using SPSS statistical software version 19.0 (Chicago, Illinois, USA).
Clinical characteristics of OSA patients and control group in this study were shown in Table 1. No significant differences were shown among 3 groups in age, BMI, total cholesterol (TC), triglycerides (TG), or fasting blood glucose (FBG). However, remarkable differences were observed in AHI and oxygen desaturation index (ODI) among 3 groups. As expected, ODI and AHI were gradually augmented as the severity of OSA increased (Table 1).
Table 1: Clinical and metabolic characteristics of patients with OSA and normal control. View Table 1
As a well-established maker of left ventricular systolic function, LVEF was not significantly different among 3 groups (Table 1). Among the left ventricular diastolic functional parameters, there were no significant difference in the E, A, and E/A ratio among 3 groups (Table 1). The Am was also not markedly different among 3 groups (Table 1). The E/Em ratio of OSA patients was significantly higher than that of the control group (Table 1 and Figure 1A). However, Em/Am ratio and Em were lower in patients with OSA than in the control group (Table 1, Figure 1B and Figure 1C). Furthermore, the maximal LAVI of the patients with moderate-severe OSA was significantly larger than that of the control group (Table 1 and Figure 1D). Em and Em/Am ratio gradually decreased with the increase of OSA severity. However, the E/Em ratio gradually increased with the increase of OSA severity. In addition, there were negative correlation between the Em/Am ratio, Em and ODI (r = - 0.458, r = - 0.435, P < 0.01), AHI (r = - 0.436, r = - 0.389, P < 0.01) (Table 2). However, there were positive correlation between the E/Em ratio, maximal LAVI and ODI (r = 0.378, r = 0.445, P < 0.01), AHI (r = 0.334, r = 0.483, P < 0.01) (Table 2).
Figure 1: Left ventricular diastolic functional parameters in patients with OSA and controls.
Left ventricular diastolic functional parameters were measured by echocardiography. A) The ratio of early diastolic peak transmitral flow velocity (E) to peak early diastolic mitral annular velocity (Em); B) Em; C) The ratio of Em to peak late diastolic mitral annular velocity (Am); D) Maximal left atrial volume index (LAVI). Data are presented as mean ± SD. (n = 25 in control group, n = 30 in mild OSA group, n = 36 in moderate-severe OSA group). *: P < 0.05, mild OSA and moderate-severe OSA groups vs. control; #: P < 0.05, moderate-severe OSA group vs. mild OSA. View Figure 1
Table 2: Correlations between AHI, ODI and PTX3, left ventricular diastolic functional parameters in study population. View Table 2
In our study, serum levels of PTX-3 were significantly different among the 3 groups (P < 0.05), accompanying with the increase of OSA severity, PTX-3 gradually increased (Table 1 and Figure 2). Moreover, PTX-3 was positively correlated with AHI (r = 0.607, P < 0.01), and ODI (r = 0.603, P < 0.01) (Table 2).

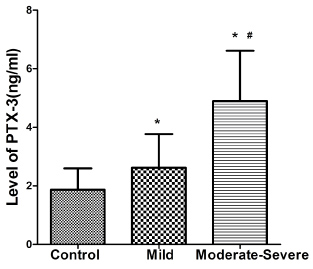

Figure 2: Level of PTX-3 in serum.
Pentraxin-3 (PTX-3) contents were measured by enzyme-linked immunosorbent assay. Data are presented as mean ± SD. (n = 25 in control group, n = 30 in mild OSA group, n = 36 in moderate-severe OSA group). *: P < 0.05, mild OSA and moderate-severe OSA groups vs. control; #: P < 0.05, moderate-severe OSA group vs. mild OSA. View Figure 2
The Pearson correlation analysis demonstrated that PTX-3 was positively correlated with the E/Em ratio and maximal LAVI (r = 0.562, r = 0.550, P < 0.01) (Figure 3A and Figure 3B). However, PTX-3 was negatively correlated with the Em/Am ratio and Em (r = - 0.516, r = - 0.565, P < 0.01) (Figure 3C and Figure 3D).
Figure 3: Correlation between PTX-3 and left ventricular diastolic functional parameters.
A) Correlations between the ratio of early diastolic peak transmitral flow velocity (E) to peak early diastolic mitral annular velocity (Em) and pentraxin-3 (PTX-3); B) Correlations between maximal left atrial volume index (LAVI) and PTX-3; C) Correlations between the ratio of Em to peak late diastolic mitral annular velocity (Am) and PTX-3; D) Correlations between Em and PTX-3. View Figure 3
In the present study, the results demonstrated the appearance of early asymptomatic left ventricle dysfunction and signs of subclinical inflammation in patients with OSA. The left ventricle dysfunction observed in our study was characterized by LVDD (reduced Em/Am ratio, reduced Em, increased E/Em ratio, increased maximal LAVI) and was more evident in patients with moderate-severe OSA. Levels of PTX-3 in serum significantly increased in OSA patients. There was a positive correlation between LVDD and serum PTX-3 level in OSA patients.
LVDD was an important cause of cardiovascular morbidity and was regarded as the initial pathophysiological step of cardiac abnormality . Previous studies showed that ventricular diastolic dysfunction predicted the risk of the clinical atherosclerosis, hypertension and heart failure . Some studies had described that OSA was an independent risk factor for the development of cardiac disorders. LVDD was common complication in OSA patients . Alper Kepez, et al.  determined significantly decreased mitral E/A ratio and significantly increased left atrial diameters in OSA patients compared with control group. Recently study reported the presence of left ventricular hypertrophy, left atrial dilatation and LVDD in OSA patients without cardiovascular diseases . Our studies showed that the ratio of E/Em and maximal LAVI were higher in patients with moderate-severe OSA by means of echocardiography, a widely used non-invasive method. The ratio of Em/Am and Em decreased in patients with OSA. However, there was no significant change in LVEF among all groups. These results suggested that impairment of left ventricular diastolic function was common in OSA patients with preserved systolic function. CIH induced by respiratory events in OSA patients could result in cardiovascular function disorders. In the present study, our results showed that AHI and ODI in OSA patients were significantly higher than the control group. In addition, AHI and ODI were significantly correlated with LVDD assessed by Em/Am ratio, Em, E/Em ratio and maximal LAVI in OSA patients, which suggested that CIH induced by OSA might directly contribute to LVDD.
Inflammatory was important for the pathogenesis and adverse prognoses of heart failure. The new inflammatory marker, PTX-3, was recently suggested as a predictor of poor prognosis of heart failure . Importantly, PTX-3 was identified as an independent marker associated with the occurrence of LVDD among non-heart failure patients . PTX-3 was produced in local inflammation and it was associated with LVDD. In the experimental study , Matsubara J, et al. showed that PTX-3 was produced in the coronary circulation of patients with heart failure with normal ejection fraction and non-heart failure with LVDD. The amount of PTX-3 production in coronary circulation was positively correlated with levels of PTX-3 in systemic circulation. The increased secretion of PTX-3 in coronary circulation might prove its major role in the pathogenesis of LVDD. On the contrary, some studies [17,18] showed that PTX-3 might play a protective role in the cardiovascular system by regulating the immunoinflammatory balance. Therefore, the increased PTX-3 would play a compensatory cardioprotective role at the activated inflammatory condition. However, in the present study, our results showed that levels of PTX-3 in serum significantly increased and was significantly correlated with asymptomatic LVDD assessed by echocardiography in OSA patients. PTX-3 might play an important role in OSA-associated vascular dysfunction . Some studies showed the increased levels of ptx-3 in serum of OSA patients. A study conducted by Kasai, et al. showed that serum PTX-3 levels and arterial stiffness notably increased in OSA patients compared with control subjects, and continuous positive airway pressure treatment improved PTX-3 and arterial stiffness . For that matter, our studies showed increased serum PTX-3 levels in OSA patients compared with control subjects, which was consistent with previous studies [19,20]. Moreover, PTX-3 was positively correlated with AHI and ODI. A significant positive correlation was also found between PTX-3 and the E/Em ratio and maximal LAVI in OSA patients, respectively. PTX-3was also negatively correlated with the Em/Am ratio and Em, respectively. The results showed that PTX-3 levels were markedly correlated with the presence of LVDD among OSA patients, and that PTX-3 was an important inflammatory marker to induce LVDD in OSA patients in our study, but not an inducible promoter. PTX-3, as an important inflammatory marker, could predict the risk of LVDD in patients with OSA. Further studies might need to estimate pathological roles of PTX-3 in OSA patients with LVDD.
In conclusion, OSA patients showed increment of pentraxin-3 and the presence of LVDD. Furthermore, PTX-3 and LVDD were independently related with OSA severity. PTX-3, Em, Em/Am, E/Em and maximal LAVI could be used as signs of early asymptomatic left ventricular myocardial dysfunction in patients with OSA.
This work was supported by grants from science and technology foundation projects of Hebei Province (Project Number: 18277786D).
Jie-Ru Li and En-Sheng Ji conceived and designed the experiments. Jie-Ru Li, Xiu-Hua Gao, Ju-Qiang Han, Wen-Yan Luo, participated in the experimental studies. Jie-Ru Li and En-Sheng Ji wrote the paper.
The project supported by science and technology foundation projects of Hebei Province (Project Number: 18277786D).
