Dental erosion from acid drinks is known; in vitro with in vivo evidence that apple and grape juices cause erosion is rare.
i) To test acidity (pH and buffering capacity) in vitro; ii) And assess if these juices leach calcium from teeth in vivo.
First: Six commercially available potable apple and grape juices were measured (six times each drink) for pH and buffering using 0.5 Molar NaOH with a Mettler DL 25 Automatic Titrator. The apple and grape juices were measured separately, using a 50 mL bolus for measures, 6 times for each. Second: Two volunteer cohorts; (One fully dentate WITH TEETH (mean age 20, M:F 6:6, n = 12) the second edentulous WITHOUT TEETH (mean age 61, M:F 6:6, n = 12)), were used to swish with 50 mL aliquots of Apple and/or Grape juices for 30 seconds. Each sample was analyzed six times with Inductively Coupled Plasma with Optical Emission Spectroscopy (ICP-OES) for Calcium, and Phosphorous. Juices from source were analyzed for Calcium, and Phosphorous, and post-swish expectorate samples were analyzed for Calcium and Phosphorous. Data were analyzed 'blind' by technicians unaware of the source of procured samples.
Analysis reveals apple and grape juices have pH below 5.5. Statistics consistently show significant (p < 0.01 Student-t paired data) increases in Calcium and Phosphorous leeched from dentate (WITH TEETH) subjects after swishing with apple and grape juices tested. Results provide strong evidence that rinsing with Apple or Grape juices will erode teeth. Grape is more erosive than apple juice.
Apple and grape juices have acidity below critical pH 5.5; Both have strong buffering capacities and will decalcify teeth by erosion, when exposed to these drinks in diets.
Acid, Apple juice, Buffering, Calcium, Dental-erosion, Drinks, Critical pH, Grape juice, Hydroxyapatite, Phosphorous, Tooth destruction
Acidic drinks and food are consumed worldwide for a long time and presumed to be innocuous to good health and teeth [1]. Acidic drinks and food do affect teeth, and chronic repeated regular consumption exposure will contribute to the causes of dental ravages (in the form of dental abrasion, attrition, erosion and caries) [2]. Acids are sourced in the drinks, but also after drinking them, more acid is produced from oral bacterial plaques catabolizing mono- and disaccharides as fermentable sugars in the drinks [3]. Intra-orally, whole stimulated human saliva slowly neutralizes and/or buffers ingested acid beverages [3,4]. After swallowing a bolus of acid beverage, the intra-oral acidity (pH = 7.00) drops to pH = 4 or lower, within 3 to 5 minutes [4]. Oral biofilm with acidogenic bacterial action on fermentable carbohydrates (monosaccharides like glucose and fructose; Disaccharides like maltose and sucrose) also lower the pH to below pH = 4. Intra-oral pH takes about 25 to 30 minutes to eliminate the acid environment, as further stimulated-saliva neutralizes any residual acid [4]. The acknowledged critical pH to dissolve hydroxyapatite is pH = 5.5 [5]. The major Ca-crystal in teeth is hydroxyapatite, which is structurally composed of calcium-deficient carbonated hydroxyapatite. Consequently, the dental hydroxyapatite crystals are more vulnerable to decalcification in acid media [5]. Frequent regular exposure to acidity from drinks modifies intra-oral pH to below the critical pH (pH = 5.5). At pH 5.5 chemical dissolution of calcium from dental hydroxyapatite occurs. Keeping the pH low at pH, < pH = 5.5, promotes mordant development of ravages initiated and developing from decalcification. Not only is the acidity and buffering of drinks themselves important, but also calcium (and phosphate) content are relevant when considering erosive attack from beverages [5]. Long-term regular drinking, timing of consumption, type and quantity of beverage, and method of drinking, are all recognized as having influences on the realization of dental ravages [2]. Fresh fruits are generally associated with well-being, and images of fresh grapes and particularly apples are linked with healthy teeth [6,7]. The association of fresh fruit with manufactured juiced products is promoted as "natural" and wholesome. Consequently, global consumption of fruit drinks takes little regard of the effect on teeth, and most people imbibe these fruit drinks to excess and don't believe there is any long-term damage to their dentition. Fruit drinks contain a variety of nutrient chemicals like carbohydrates, vitamins and various amounts of different carboxylic acids, like malic acid in apples and tartaric acid in grape [2,6,7].
Erosion is described as the loss of calcified tooth material, without the effect of bacteria and no cavitation [8,9]. Research shows erosion in teeth in vitro and in vivo, occurs when pop-colas are consumed regularly [10,11]. While the acidity of some common liquids is known, few in vivo reports record the pH of commercially potable grape and apple juices, and their oral effects. Some experimental evidence exists to show fruit drinks are erosive to teeth [1-3,12,13], but scant combined (in vitro and in vivo) evidence exists about the erosive acidic nature linked with the effect of drinking specific commercially available apple and grape juices on teeth [14]. Repeated frequent-exposure by dissolving fruit acids like malic (in apple) tartaric acids (in grape) allows for chronic micro-attacks on the hard tooth material, and slow inexorable dissolution of the teeth, resulting in dental erosion [12,13,15-17].
This research reports on the acidity as pH, and buffering capacity in vitro of grape and apple juices, and assesses in vivo if these juices leach out calcium from teeth.
This study was divided into two parts:
Part I: Acid properties: Measures of acidity; pH and buffering capacity.
Part II: Proof-of-principle: Comparison of calcium in drink, after being swished with teeth and without teeth; M =
Molar; ppm = parts per million (mg/L); Ca++ = Calcium ion.
Six commercially available potable apple and six commercially available grape juices were measured (six times for each drink) for pH and buffering using 0.5 M NaOH with a Mettler DL 25 Automatic Titrator [15]. These methods are described in researches on other drinks, namely Colas and Guarana-Pop [10,11]. The apple and grape juices were tested for acidity pH and buffering; A 20 ml bolus from each was measured 24 times. Buffering/neutralizing was measured with 0.5 M solution of Sodium Hydroxide, to assess how much is needed to: 1) Raise the test sample pH one unit; 2) To raise the pH to 5.5 (critical pH); and 3) To raise the pH to pH 7.00 neutral (close to oral pH). Six Apple juices tested were purchased by chance at retail outlets. The Six different Apple juices were: Tropicana Apple Juice, Minute Maid Apple Juice, Oasis Apple Juice, Oasis Low Acid Apple Juice, Rougemont Apple Juice, and Selection Apple Juice. Six Grape juices tested were purchased by chance at retail outlets. The Six different Grape juices were: Tropicana Grape Juice, Oasis Grape Juice, Welsh's Grape Juice, Rougemont Grape Juice, Fruite Grape Juice and Selection Grape Juice.
For Part I Apple juices Figure 1 and Figure 2, and for Part I Grape juices Figure 3 and Figure 4.
Figure 1: The pH values of apple juices. Means are recorded: I-bars represent ± SD. The pH's are all below the critical pH 5.5. (Red vertical line).
View Figure 1

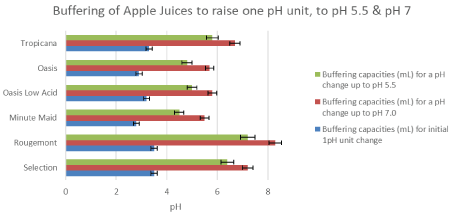

Figure 2: The buffering capacity for apple drinks. The mean amounts of 0.5 Molar NaOH to raise the pH of 6 apple drinks to pH 5.5 (green), to pH 7 (red), and to one pH unit (blue). I-bars represent ± SD. View Figure 2
Figure 3: The mean pH values of grape drinks. I-bars represent ± SD. They are all below the critical pH 5.5. (Red vertical line).
View Figure 3
Figure 4: The buffering capacity for grape juices. The mean (± SD too small) amounts of 0.5 Molar NaOH to raise the pH of grape drinks to pH 5.5 (green), to pH 7 (red), and to one pH unit (blue). I-bars represent ± SD. View Figure 4
Two volunteer cohorts; (One fully dentate (mean age 20; Range 19-22 yrs; M:F 6:6, n = 12) the second edentulous (mean age 61; Range 55-64 yrs, M:F 6:6, n = 12)), were used. A pilot study with one of the drinks (Tropicana as representative of the brands tested), was performed to establish smooth running, timing, organization and protocol of procedures. Then arrangements were made to test all the brands of both types of drinks by intra-oral swishing for both cohorts. The temperature of all the drinks were 20 ℃ (and the room temperature was 23.2 ℃). First 50 mL aliquots of one brand of Apple drink was swished for 30 seconds. After expectorating the test sample, a wait time was sustained for 30 minutes and the subject asked to chew some wax, and rinse out with water, for a few seconds before repeating the swish experiment on the next brand of apple drink. Six brands of apple drink were tested. The tests were done succedaneous for each brand; The tests were done six times (one test for each brand of drink) with each subject. Second the same protocol was done by the same cohorts, one week apart using six brands of grape drinks. All the experiments were done in one four-hour session, at the same time, (a.m.). On different days, for the dentate and for the edentulous group. The test samples were analyzed the same day they were obtained. "n" for the dentate (WITH TEETH) subjects was 12 × 6 = 72 for the grape and similarly 72 for the apple drinks; "n" for the edentulous (WITHOUT TEETH) group was 12 × 6 = 72. Each swish-test drink was sampled and analyzed six times to procure mean results, with Inductively Coupled Plasma with Optical Emission Spectroscopy (ICP-OES) for Calcium, and Phosphorous [10,14,15]. Juices from source were analyzed for Calcium, and post-swish samples were analyzed for Calcium. To avoid inter- and intra-operator bias, all readings, results and data were analyzed 'blind' by technicians unaware of the source of the samples being tested, or the aims of this study (Figure 5).

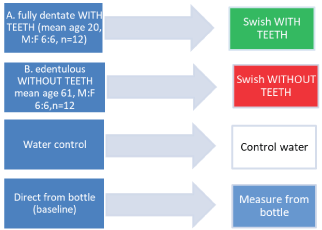

Figure 5: Experimental design for Part II. The drinks were swished by dentate volunteers WITH TEETH (A) and edentulous WITHOUT TEETH (B). The major variable was the presence of teeth in the mouth. Control measures were used for comparison derived from water, and the apple and grape drinks tested. View Figure 5
Measures for Calcium each drink:
1. Calcium from Swish WITH TEETH……………A. A - (D + E) = A'
2. Calcium from swish WITHOUT TEETH……..B. B - (D + E) = B'
3. Calcium from water……………….……………… C.
4. Calcium from the can……………………………..D.
5. Calcium from stimulated saliva….…………..E.
Compared with paired data from A' and B' were calculated. A' (drink swished WITH TEETH) has significantly more calcium derived from teeth, than B' (drink swished WITHOUT TEETH). p < 0.05 considered significant. Student-t test was used (Figure 6 and Figure 7).

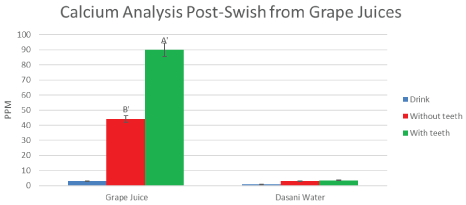

Figure 6: Mean calcium measures direct from the drink can (blue) from grape juice, from swishes WITHOUT TEETH (B') (red), and WITH TEETH (A') (green). The post-swish increase in calcium release is 90 ppm after swishing WITH TEETH, compared to 44 ppm swishing WITHOUT TEETH. There is a highly significant difference when compared to results from dasani bottled water, (0.2-2.5 ppm). Negligible calcium was detected in grape juices from the containers (0.5 ppm). Even when accounting for the Ca++ in water stimulated saliva, there is significant (p < 0.01 student-t paired data) increases in calcium leeched from the group WITH TEETH, compared to the controls WITHOUT TEETH, after swishing with grape juices. Means are reported (± SD are shown on graphs and were included in statistical analysis). View Figure 6

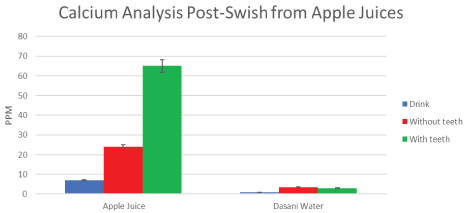

Figure 7: Mean calcium measures direct from the drink can (blue) from apple juices, from swishes WITHOUT TEETH (B'-red) and WITH TEETH (A'-Green). The post-swish increase in calcium release is 65 ppm after swishing WITH TEETH, compared to 24 ppm swishing WITHOUT TEETH. There is a highly significant (p < 0.01) difference when compared to results from dasani bottled water, (0.2-2.5 ppm). Negligible calcium was detected in apple juices from the container (< 10 ppm). Even when accounting for the Ca++ in water stimulated saliva, there is significant (p < 0.01 Student-t paired data) increases in calcium leeched from the group WITH TEETH, compared to the cohort WITHOUT TEETH, after swishing with apple juices. Means are reported (± SD are shown on graphs and were included in statistical analysis). View Figure 7
For Part II Calcium (Ca++) content, of apple and grape drink-swishes from WITH- and WITHOUT teeth, and with controls using water and measures from the bottle or can. All measures WITH TEETH for calcium showed a significant (p < 0.01) increase in Calcium content (Figure 6, Figure 7 and Figure 8).

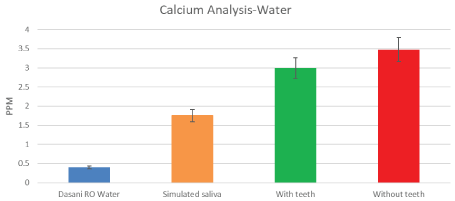

Figure 8: Mean calcium measures of dasani bottled water as control (blue). To start 0.5 ppm Ca++ is found to start from the container, and 2.5 mg Ca++ (maximum) from stimulated saliva (orange). This increases up to 3-3.5 ppm Ca++ both WITH TEETH (green) and WITHOUT TEETH (red); These increments are extremely small. This small amount of calcium is derived from both dental and saliva. This is accounted for and used for comparisons as the baseline control. I-bars represent ± SD. View Figure 8
Further analysis of the results shows significant increases (p ≤ 0.01) in leeched calcium from dentate subjects after swishing with the drinks tested. Means are reported (± SD are shown on graphs and were included in statistical analysis). Even when accounting for the Ca++ derived from saliva-water swishing, statistics consistently show significant (p ≤ 0.01) increases in calcium leeched from dentate (WITH TEETH) subjects, compared to edentulous (WITHOUT TEETH) subjects, after swishing with the drinks tested. The grape juices tested caused more decalcification than the apple juices tested (90 ppm Calcium for grape vs. 65 ppm Calcium for apple). Hard tissue erosion, (as chemical dissolution of calcium without bacterial action or cavitation) [18], varies between apple and grape juices, grape causing more erosion. Decalcification was consistently produced from both types of drinks after swishing.
Hard tissue erosion, (as chemical dissolution of calcium without bacterial action or cavitation) [18], varies between apple and grape juices, grape causing stronger erosion. Decalcification was consistently produced from both types of drinks after swishing. The results of this research are in concordance with other related researchers, that show powdered and other modified acid drinks are erosive [13,16,19]. In the research presented above, the acidity as measured by pH and buffering capacity of the drinks was all significantly lower than the critical pH 5.5. This indicates these acid drinks have the strong potential to dissolve calcium out of teeth. It also suggests saliva which is a weaker alkali than 0.5 Molar NaOH, does not quickly nor totally neutralize imbibed acid. Some authorities [6,7,18]. State the intra-oral recovery period back to neutral takes 30 minutes without further salivary stimulus, that the critical pH is 6.5, and with a physical stimulus like from a bland wax-chew, the stimulated saliva hastens neutralizing the residual dietary acid [6,7,18]. Compared to other common ubiquitous liquids, the apple and grape juices as tested were recorded at a pH 3.5, which is very acidic with strong buffering capacity, and consequent erosive effects (Figure 9).

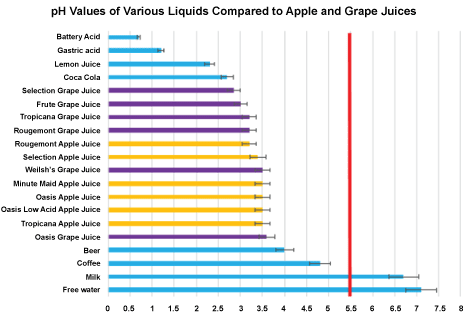

Figure 9: pH measures of ubiquitous acid liquids: The blue bars are pH measures of other common liquids. All the acidities of the grape and apple juices measure pH 3.5 (purple and yellow bars in this graph) and are significantly below the critical pH 5.5 (red vertical line) at which pH most acids dissolve calcium hydroxyapatite in teeth. View Figure 9
Dental erosion may be moderated by various co-factors including dental substrate density, Ca++, phosphate (PO4)3-, and fluoride (F-) composition. The phosphate concentration is not reported here as it does not add to the evidence demonstrating proof-of-principle of decalcification. Also, the enamel pellicle, salivary proteins, volume of stimulated saliva, dental anatomy, occlusion (as it influences flow over tooth surfaces), vigorous function of oral soft tissues especially the tongue, …all may affect development of erosion [4,5,7,18]. But none are as important as the decalcification by acid action, notably the composition, and the measure of acidity: The pH, and buffering capacity of the drinks. As shown above, apple and grape are no exception to this. Because it is virtually impossible to procure young age-matched edentulous (WITHOUT TEETH) people as controls, the age difference in the edentulous controls was accepted, as the edentulous cohort were all healthy, and not taking any medications. The dentate (WITH TEETH) test-subjects were also all healthy, and an oral visual examination confirmed they all had a full complement of well-formed, erupted functional adult teeth, and wisdom teeth (if present) were accepted, but were not mandatory. DMFT (decayed missing and filled teeth index) was ignored. The controls as measures of the calcium (Ca++) reported (and phosphate (PO4)3-) ions, not reported here) direct from the cans, and after water-swishing were small. When subtracting this from results derived after test-swishing, statistics consistently show significant (p ≤ 0.01) increases in Calcium leeched from dentate (WITH TEETH) subjects, compared to edentulous (WITHOUT TEETH). Rationally, the extra calcium in the swished-expectorates, could only derive from the teeth. Colas and other similarly acidic gaseous drinks containing phosphoric and citric acids, with or without sugars added, show similar results [10,11]. Because the buffering capacity of saliva is weak neutralization will take up to half an hour to neutralize the residual oral acidity, and to return the intra-oral pH to baseline pH 7 [4,18]. The reasoning behind using 30 secs swishing with 50 mL aliquots is as follows: Aliquots of 50 mls were swished for 30 seconds. A 350 ml can of drink takes about seven gulps to finish, and each gulp is in the mouth with each mouthful in contact with teeth, for about 4 to 5 seconds. Most drinkers finish a 350 ml can within a period of 5 to 10 minutes. With seven gulps of 50 ml to finish a can of the drink, amounts to the equivalent of swishing a 50 ml bolus for about 30 seconds. During this time, the intra-oral acid drink will be in contact with the teeth-surfaces. This explains why 30 seconds of swishing was used for the in vivo testing. The intra-oral pH allows for decalcification during this period. Clinically, among the earliest signs of erosion is the onset of cervical dentinal sensitivity [20]. When this is reported further investigation and advice on reduced dietary intake of acidulated drinks is indicated [12]. Further comparisons between other potable acidic drinks call for further in vivo research.
With regard to apple and grape juices, both contain known carboxylic acids, malic in apple, tartaric in grape. Both drinks, as apple or grape juices in a diet, may cause dental erosion. Grape seems to be more erosive than apple juices. Constituent apple (malic) and grape (tartaric) acids overwhelms all the co-factors of oral protective mechanisms in vivo and allows dental decalcification. The erosion may be small and undetectable with solitary drinking, but results presented here provide strong evidence that prolonged and frequent imbibing of apple and grape juices will erode teeth.
The authors have no conflict of interests to declare.
This research was approved by McGill Human Ethics Internal Review Board: Reference Number: AO2-M31-088. Informed consent forms, privacy and all requirements were satisfied, complied with and instituted for this project.
This research was supported by a grant (OVPR-217 000) from the Office of the Vice-Principle Research, McGill University.
Thanks to Prof. Richard Munz, Dr. Natalie Tufenkji, Andrew Golsztain**, Ranjan Roy**, McGill University Faculty of Dentistry, **Dept of Chemical Engineering, for providing laboratory space, facility and technical assistance.
